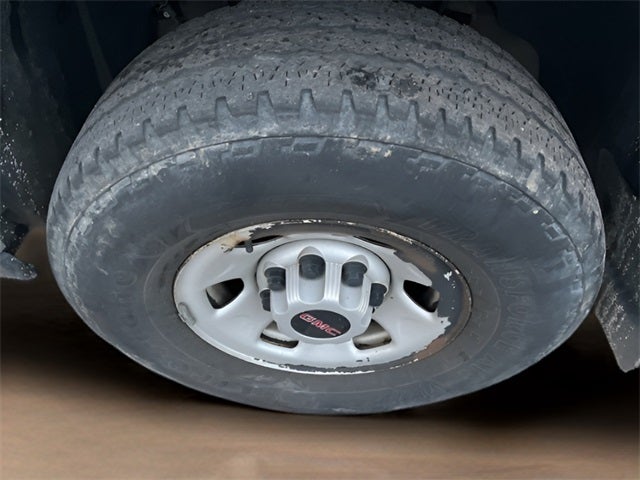

• Wheels, 4-16" x 7.0" (40.6 cm x 17.8 cm) 8-lug steel (single rear wheel) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Center cap is Argent. Not available with (C7W) 11,400 lbs GVWR (dual rear wheels).)
• Tires, LT265/75R16E on-/off road, blackwall (Not available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel). Includes 5 tires with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Bumper, front chrome (Includes Black bumper top caps)
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Air dam, Black
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection, top of tailgate protection cap

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock

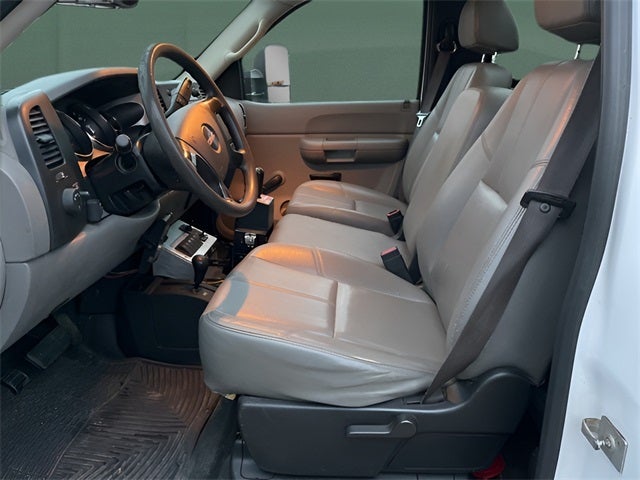

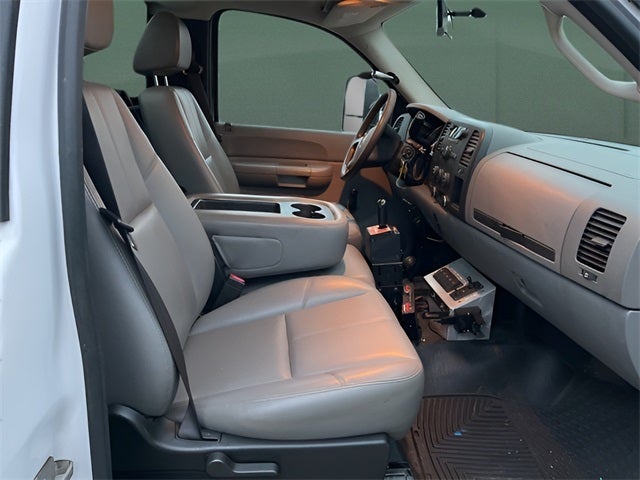

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Floor covering, black rubberized vinyl
• Steering wheel, includes theft-deterrent locking feature
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Tire Pressure Monitoring System (does not apply to spare tire) (Not standard on (C7W) 11,400 lbs. (5171 kg) GVWR)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com. Not available with (UE0) OnStar, delete.)
• Audio system feature, 4-speaker system (Requires Regular Cab models)

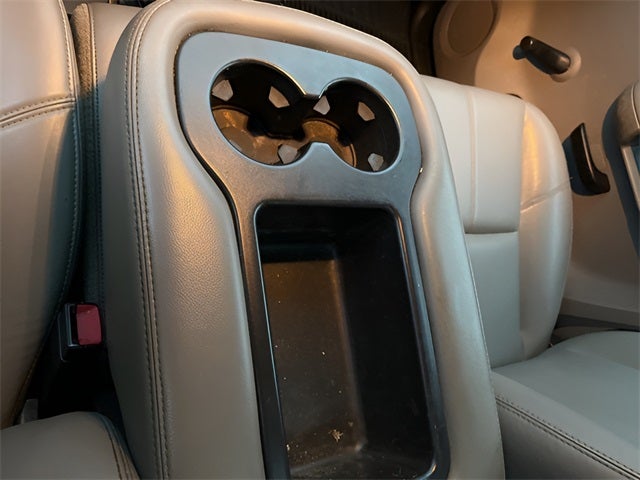

• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding, with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. If the order type is FDR, (UE0) OnStar delete will be forced on. Not available with a ship-to of Puerto Rico or the Virgin Islands. Remote Door Unlock requires (AU3) power door locks.)
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

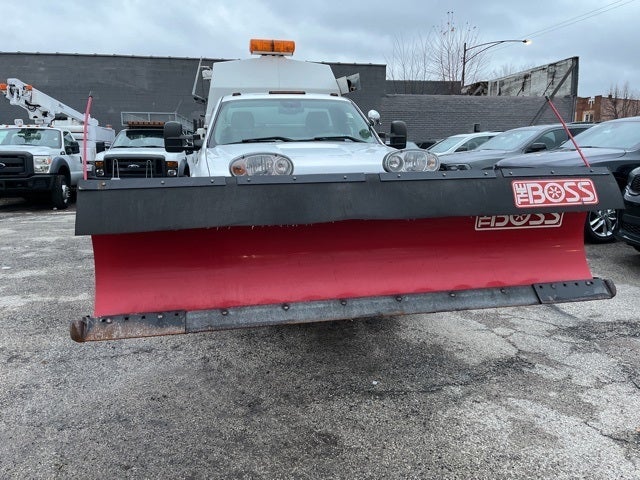

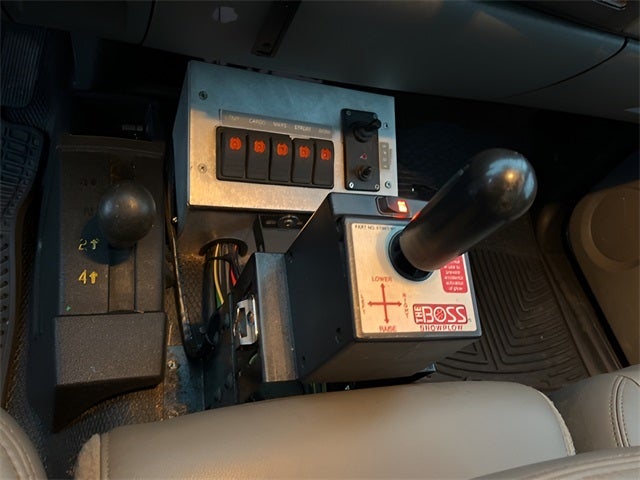

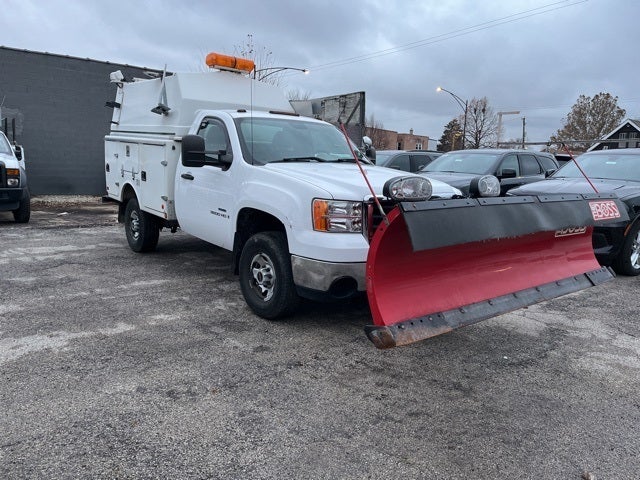

SNOW PLOW PREP PACKAGE

• includes 15-amp power for backup and roof emergency light
• high-flow front bumper
• forward lamp wiring harness
• (TRW) Provision for cab roof mounted lamp/beacon
• instrument panel jumper wiring harness for electric trailer brake controller and (NZZ) Skid Plate Package

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

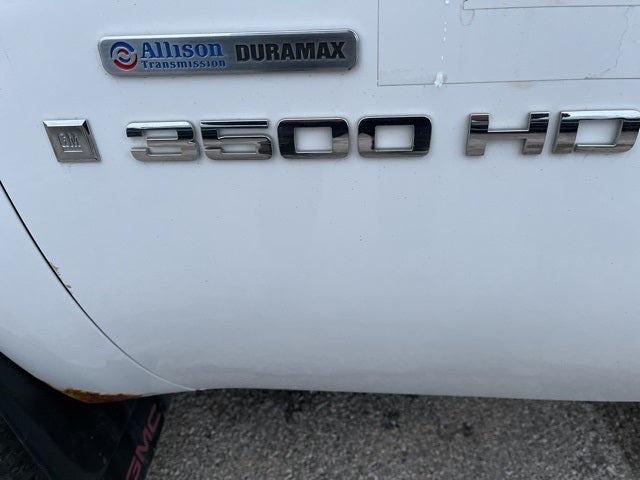

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater)

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

TIRE, SPARE LT265/75R16E ON-/OFF-ROAD, BLACKWALL

• includes 16" (40.6 cm) steel spare wheel and spare tire carrier

PICKUP BOX, DELETE

• includes bumper delete
• spare tire delete and spare tire carrier delete (Standard on TC30903)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

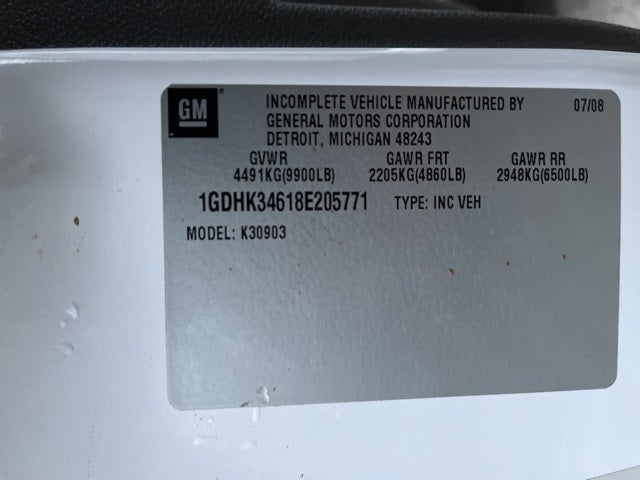

GVWR, 9900 LBS. (4490 KG)

• with single rear wheels (STD)

MIRRORS, OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE, BLACK

• with manual folding and extension and lower convex spotter glass

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

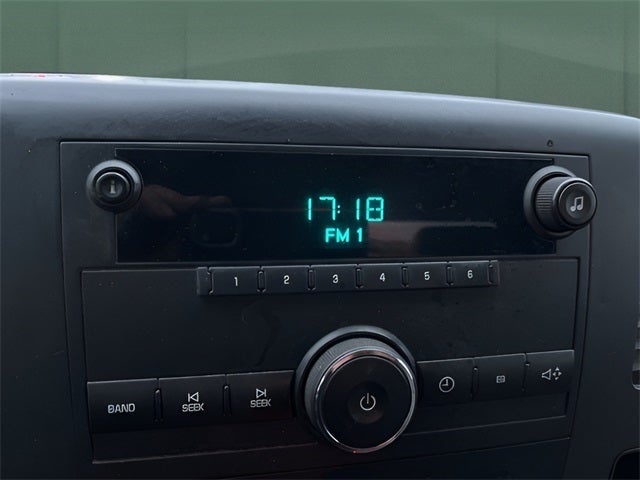

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock

SOLID PAINT

• (STD)

• 16' X 7.0' 8-Lug Steel Wheels
• 3-Passenger Front 40/20/40 Split-Bench Seat
• 3.73 Rear Axle Ratio
• 9,900 lbs (4,490 Kgs) GVWR
• Allison 1000 6-Speed Automatic Transmission with Overdrive
• AM/FM Stereo
• Dark Titanium
• Federal Emissions Requirements
• Front License Plate Bracket
• Heavy-Duty Handling/trailering Suspension Package
• High-Visibility Camper-Style Black Outside Mirrors
• LT265/75R16E On/off Road BW (4) Tires
• OnStar Delete
• Rear Bumper Delete
• Single-Zone Manual Front Climate Control
• Smoked Amber Roof Marker Lamps
• Summit White
• XM Satellite Radio
• XM Satellite Radio Delete
• Duramax 6.6L Turbo Diesel V8 Engine
• Pickup Box Delete
• Preferred Equipment Group 1SA

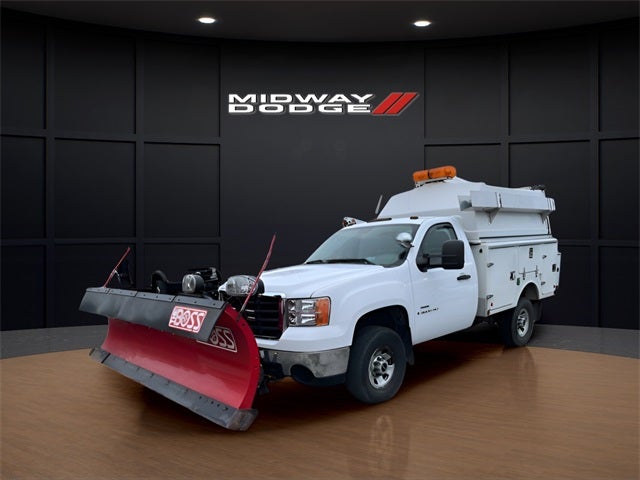

• Snow Plow Prep Package
• Spare LT265/75R16E On/off Road BW Tire
• 12V power outlets 2 12V power outlets
• 16' X 7.0' 8-Lug Steel Wheels
• 4 Speakers
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 730 CCA Heavy-Duty Dual Battery
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air conditioning Yes
• Alternator Type Dual alternator
• AM/FM radio: XM
• AM/FM Stereo w/MP3 Compatible CD Player
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Ashtray
• Auto headlights Auto on/off headlight control
• Auxiliary power take-off
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Block heater Engine block heater
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumpers front Chrome front bumper
• Bumpers: chrome
• Cab mounted cargo light
• Cabback insulator
• CD player
• Clearance lights Cab clearance lights

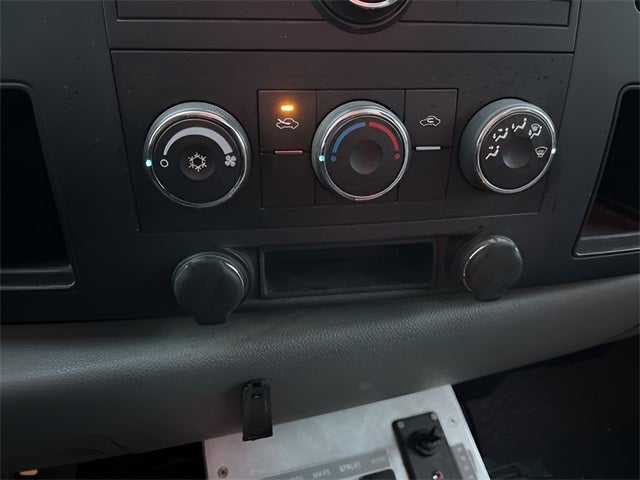

• Climate control Manual climate control
• Clock Digital clock
• Compressor Intercooled turbo
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Manual door locks
• Door mirror style Black door mirrors
• Door mirror type Manual extendable trailer mirrors
• Drive type Four-wheel drive
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Dual 125-Amp Alternators
• Dual front impact airbags
• Emergency communication system: OnStar Safe & Sound
• Emissions Federal emissions
• Engine Block Heater
• Engine block material Iron engine block
• Engine cooler Engine oil cooler
• Engine Cylinders Duramax V8
• Engine Duramax 6.6L V-8 diesel direct injection, intercooled turbo, diesel, engine with 365HP
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Duramax 6.6L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• First-row windows Manual first-row windows
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Center Armrest w/Storage
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Vinyl front seat upholstery
• Front seatback upholstery Carpet front seatback upholstery
• Front wheel independent suspension
• Fuel Type Diesel
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Glove box Locking glove box
• Grille style Black grille with chrome surround
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• High mount stop light High mounted center stop light
• Ignition Compression ignition system
• Ignition type Mechanical
• Immobilizer
• Instrumentation display Analog instrumentation display
• Interior courtesy lights Fade interior courtesy lights
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for coolant, fuel, washer fluid and brake fluid
• Low tire pressure warning Tire specific low air pressure warning
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 2 airbags
• Number of doors 2 doors
• Oil pressure gauge
• Oil pressure warning
• Overdrive transmission

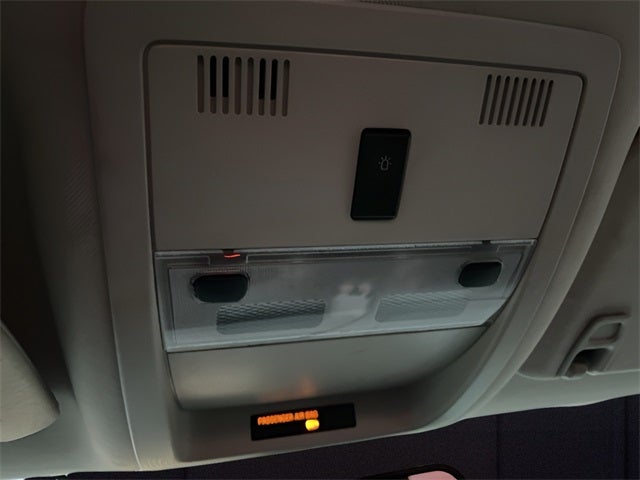

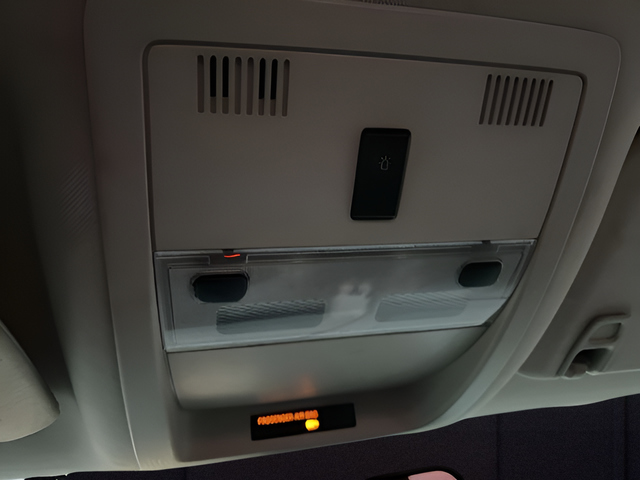

• Overhead console
• Overhead console Mini overhead console
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Power steering
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Provision for Cab Roof Mounted Lamp/Beacon
• Provisions Snow plow provisions
• Radiator
• Radio AM/FM/satellite prep
• Radio data system
• Rear locking differential Automatic rear locking differential
• Rear Springs Regular grade rear springs
• Rear step bumper
• Rear windshield Fixed rear windshield
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seating capacity 3
• Seek scan
• Selectable mode transmission
• Sequential shift control
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Skid plate 2 underbody skid plates
• Skid Plate Package
• Spare tire location Crank-down spare tire
• Speakers number 4 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats 40-20-40 split-bench front seat
• Springs front Front torsion springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Suspension Heavy-duty ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Tilt steering wheel
• Tinted windows Light tinted windows
• Tires LT265/75SR16 AT BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Transfer case Manual transfer case shift
• Transmission Allison 6-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission Type Automatic
• Trip odometer
• Turn signal warning Turn signal on warning
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Vinyl Seat Trim
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 7-inch front and rear painted steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 2 @ 125
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6500
• Curb Weight - Front (lbs): 3241
• Curb Weight - Rear (lbs): 2559
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1485
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3825
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6500
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6500
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QER
• Rear Tire Order Code: QER
• Spare Tire Order Code: ZER
• Front Tire Size: LT265/75R16E
• Rear Tire Size: LT265/75R16E
• Spare Tire Size: LT265/75R16E
• Front Tire Capacity (lbs): 2790
• Front Tire Capacity (lbs): 2470
• Rear Tire Capacity (lbs): 3260
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.0
• Length, Overall w/o rear bumper (in): 225.0
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 75.6
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 9.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.7
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.3
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Reg Cab
• Body Style: Reg Cab 8' Fleetside
• Body Code: ZW9
• Body Code: E63
