• Donaldson single element air cleaner-inc: restriction indicator
• Borg Warner SA75 viscous screw-on type fan clutch cooler
• Fleetguard FS19557 fuel & water separator w/electric type heater & primer pump
• Extended life coolant *to -40 degrees F/-40 degrees C. freeze protection*
• 12-volt Delco Remy 38T type 300 starting motor
• Dana SPL100 driveshaft
• Dual 625 CCA 12-volt Motorcraft batteries RH under cab step
• 12-volt, 185-amp Leece-Neville brushless-type pad mounted alternator
• Rear wheel drive
• 15.14 sm, 80000 psi straight C channel high strength low alloy steel frame
• 10000lb Cap. (MFS-10-122A) I-beam front axle
• 10000lb parabolic taper-leaf front springs-inc: double acting shock absorbers
• 21000lb (Meritor MS-21-14X-3DLF) rear axle w/190 wheel ends
• 23500lb vari-rate multi-leaf rear springs-inc: 4500lb aux rubber springs

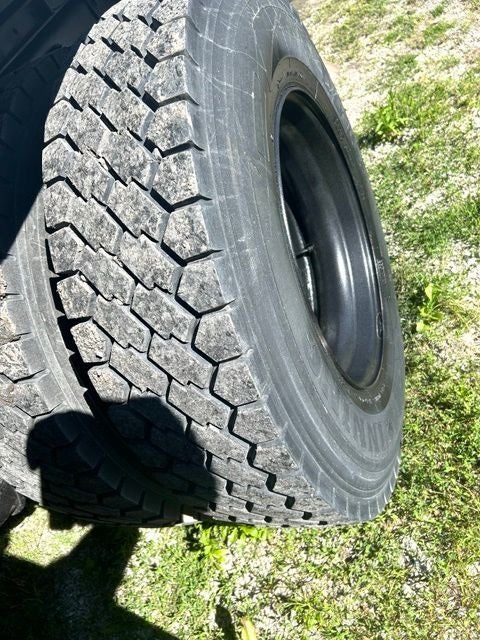

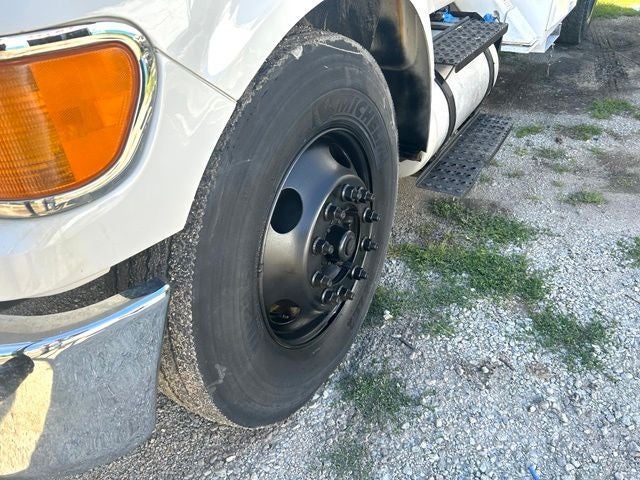

• 11R22.5G (14PR) Goodyear G661 HSA front tires
• 11R22.5G (14PR) Goodyear G661 HSA rear tires
• 22.5 x 7.5 10-hole hub piloted steel disc front & rear wheels painted white
• Front Stemco wheel seals
• Rear Stemco wheel seals w/oil lubrication
• Body builder wiring frame mount at back of cab
• SAE blade type fuses
• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• DDSA type rear axle mounted 12" x 3" parking brake w/Orscheln control
• Gold Eagle cold weather anti-gel diesel fuel additive
• RH frame mounted single horizontal diesel particulate filter assembly w/horizontal tail pipe

• Conventional steel Ford cab
• Frame mounted tilting hood & front fender assembly w/torsion assist-inc: integral noise, inner splash shields & flash guards

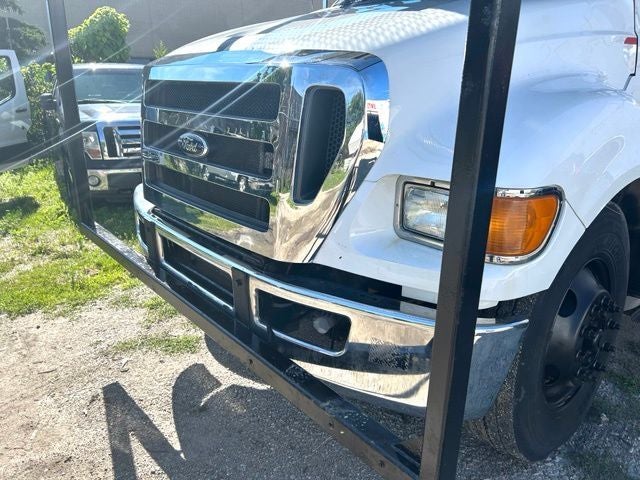

• Full width chrome plated steel front bumper (0.1875" thick)
• Chrome plastic grille-inc: chrome headlight bezels
• Laminated windshield w/solar tint on all windows
• Rectangular halogen sealed beam headlights-inc: front side marker lights w/reflectors
• 5-roof marker & clearance lights
• (2) tail lights w/integral stop, turn, backup & license plate
• Dual bright head west coast style 7.5" x 16.5" side-view mirrors
• Exterior B-pillar mounted assist handle
• Two-speed intermittent windshield wipers w/washers
• Fixed rear window

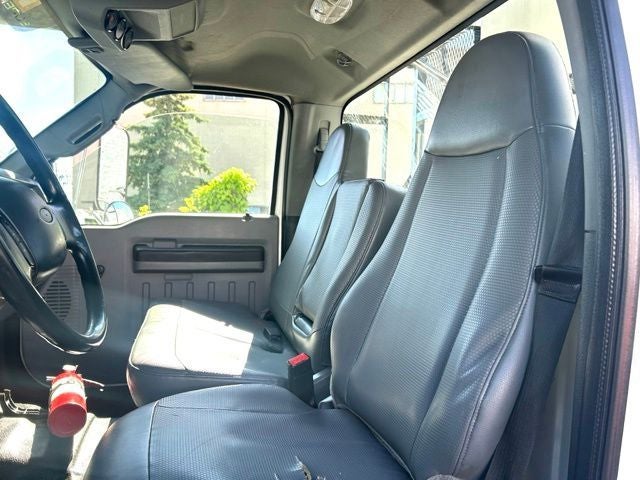

• HD steel gray vinyl 40/70 high-back driver captain chair w/integral headrest -inc: reclining back, arm rests

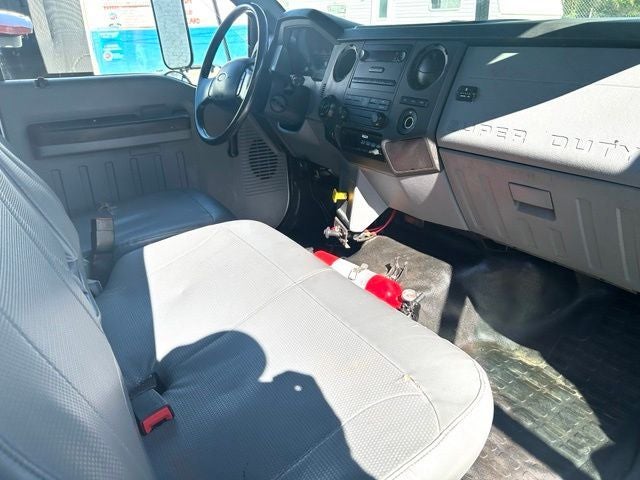

• HD steel gray vinyl (2) person passenger bench seat w/integral outboard headrest -inc: folding back, fold down armrest w/cupholders

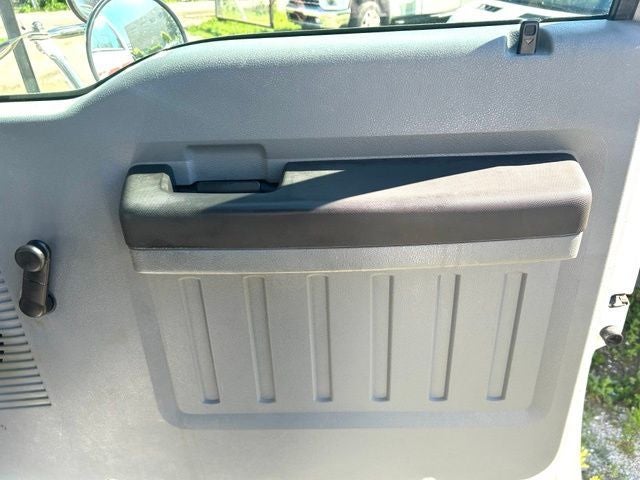

• Color-coordinated door trim w/hard arm rest, grab handle & reflector
• Black vinyl full floor covering
• Color-coordinated scuff plates
• Black two-spoke PVC steering wheel -inc: integral cruise control switches
• Tilt steering column
• Color-coordinated instrument panel

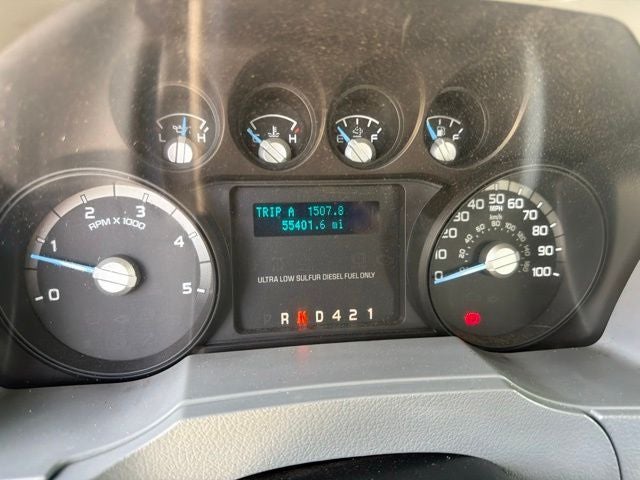

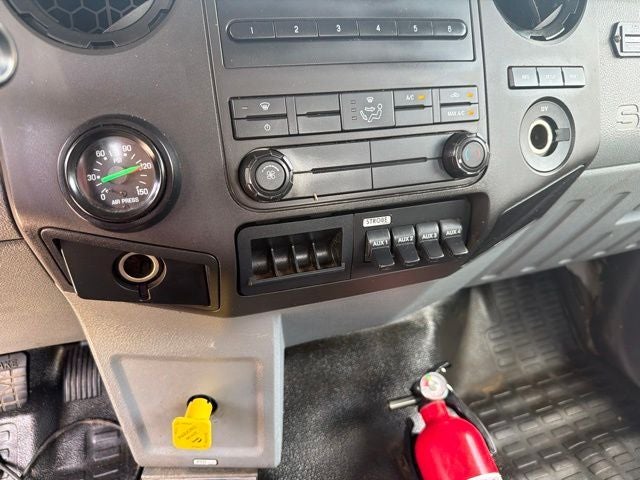

• Instrumentation -inc: speedometer, trip meter, volt meter, oil pressure, coolant temp, DEF gauge, fuel gauge, tachometer, indicator light
• Message center w/odometer, trip odometer, distance to empty, average fuel economy, warning messages
• Multifunction self canceling turn signal switch
• Cruise control

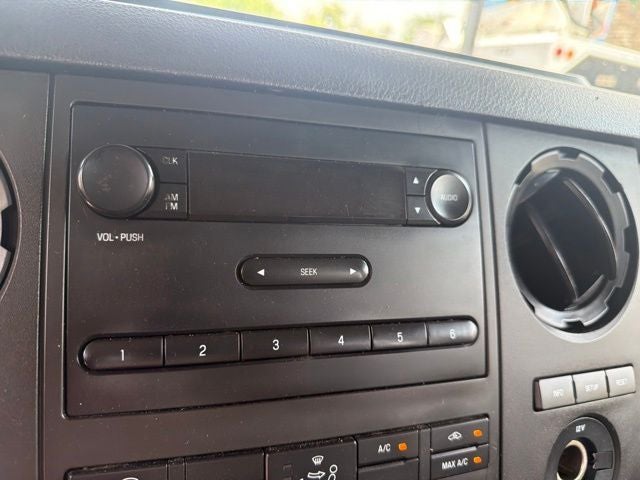

• AM/FM stereo -inc: clock, (2) speakers
• Manual air conditioning-inc: integral heater & defroster
• Cigar lighter & ash tray
• (2) aux pwr points
• Cup holder
• Interior A-pillar mounted grab handle
• Color-coordinated molded cloth headliner
• RH & LH color-coordinated coat hooks
• Door activated dome lamp
• Dual cloth covered sunvisors w/passenger mirror

• Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
• Safety belts w/fixed D-rings
• Emergency flasher
• Dual electric horns

6.7L CUMMINS ISB 200 I6 DIESEL ENGINE 240 HP @ 2300 RPM, 560 LB-FT TORQUE @ 1600 RPM

• 2600 RPM governed speed
• 240 peak HP (max)
• Delco-Remy America Inc. 38MT type 300 starter
• Borg Warner SA75 viscous screw fan clutch
• Donaldson air cleaner
• Fleetguard FS19557 fuel & water separator w/electric heater & primer pump
• red extended life coolant

• 12V power outlets 2 12V power outlets
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Air Conditioning
• Air conditioning Yes
• Alternator Type Leece Neville alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Armrests front driver Driver seat armrest
• Ashtray
• Auxiliary power take-off
• Basic warranty 24 month/unlimited
• Battery charge warning
• Battery location Battery location forward right
• Battery type Dual lead acid batteries
• Beverage holders Front beverage holders
• Body panels Composite/galvanized steel body panels
• Brake type Hydraulic disc brakes
• Bumpers front Chrome front bumper
• Bumpers: chrome
• Cigarette lighter Front cigarette lighter
• Clearance lights Cab clearance lights
• Climate control Manual climate control
• Clock Digital clock
• Compressor Intercooled turbo
• Corrosion perforation warranty 60 month/unlimited
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Iron cylinder head
• Differential Standard rear differential
• Door handle material Black door handles
• Door mirror style Stainless steel door mirrors
• Door mirror type West coast style mirrors
• Drive type Rear-wheel drive
• Driver headrest type Fixed driver seat headrest
• Driver seat back Folding driver seat back
• Driver seat back type High driver seat back
• Driver seat fore/aft Manual fore/aft
• Driver seats way-direction 4
• Driver, Bucket Seat, 30%, Reclining, Steel Gray Cloth w/Steel Gray Cloth Insert
• Driver, Bucket Seat, 30%, Reclining, Steel Gray Vinyl w/Steel Gray Vinyl Insert
• Driver's Seat Mounted Armrest
• Dual rear wheels
• Emissions Federal emissions
• Engine block material Iron engine block
• Engine Configuration Cummins I6
• Engine Cummins 6.7L I-6 intercooled turbo, diesel, engine with 240HP
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Cummins 6.7L I-6
• Engine/electric motor temperature gauge
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Front bumper ends Straight front bumper ends
• Front seat type Bucket driver seat
• Front seat type Two person benchfront seat
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Carpet front seatback upholstery
• Front splash guards
• Front wheel color White front wheels
• Front wheel material Steel front wheels
• Fuel Type Diesel
• Fuel/water separator Heated fuel/water separator
• Gearshift location Steering column lever gearshift location
• Gearshifter material Urethane gear shifter material
• Glove box Standard glove box
• Grille mount Hood mounted grille
• Grille style Chrome grille
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Horn Dual electric horn
• Ignition type Mechanical
• Instrumentation display Analog instrumentation display
• Interior courtesy lights Delay interior courtesy lights
• Key in vehicle warning
• Low level warnings Low level warning for brake fluid
• Number of doors 2 doors
• Oil pressure gauge
• Overdrive transmission
• Passenger headrest type Fixed passenger seat headrest
• Passenger seat back Folding passenger seat back
• Passenger seat back type Mid passenger seat back
• Passenger seats way-direction 2
• Passenger vanity mirror
• Power steering
• Powertrain type ICE
• PTO transmission provision
• Radiator
• Radio AM/FM
• Rear Springs Regular grade rear springs
• Rear wheel color White rear wheels
• Rear wheel material Steel rear wheels
• Rear window trim Black rear window trim
• Rear windshield Fixed rear windshield
• Roadside warranty 24 month/unlimited
• Seating capacity 3
• Seek scan
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Side steps Side assist steps
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speed control
• Springs front Tapered leaf front suspension
• Springs rear Multi-leaf rear suspension
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Suspension ride type front Rigid axle front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Leaf spring front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Aluminized steel single exhaust
• Tilt steering wheel
• Tinted windows Light tinted windows
• Tires English measure truck 279/82R22.5 AS BSW 497 RPM front and rear tires
• Tires, Rear Four 11R22.5G Goodyear G661 HSA (497 rev/mile)
• Transmission Allison 2200 6-speed automatic
• Transmission Allison 3000 5-speed automatic
• Transmission Allison 3000 6-speed automatic
• Transmission Allison 3200 5-speed automatic
• Transmission Allison 3200 6-speed automatic
• Transmission Allison 3500 5-speed automatic
• Transmission Allison 3500 6-speed automatic
• Transmission Eaton-Fuller 6-speed manual
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission Type Automatic
• Transmission Warranty 36 month/unlimited
• Trip computer
• Trip odometer
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor passenger mirror Passenger visor mirror
• Wheels 22.5 x 7.5-inch front and 22.5 x 8.25-inch dual rear wheels
• Wheels 22.5 x 8.25-inch front and 22.5 x 7.5-inch dual rear wheels
• Wheels 22.5 x 8.25-inch front and dual rear wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Front Frame Rating: - TBD -
• Axle Ratio - Low Rear (:1): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 625
• Cold Cranking Amps @ 0° F (2nd): 625
• Maximum Alternator Capacity (amps): 185
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 30.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 10000
• Gross Axle Wt Rating - Rear (lbs): 21000
• Curb Weight - Front (lbs): 5752
• Curb Weight - Rear (lbs): 3003
• Gross Vehicle Weight Rating Cap (lbs): 37000
• Suspension
• Spring Capacity - Front (lbs): 10000
• Spring Capacity - Rear (lbs): 23500
• Axle Type - Front: I-Beam
• Axle Type - Rear: Single-Speed
• Axle Capacity - Front (lbs): 10000
• Axle Capacity - Rear (lbs): 21000
• Axle Ratio (:1) - Rear: - TBD -
• Shock Absorber Diameter - Front (mm): 1.4
• Shock Absorber Diameter - Rear (mm): - TBD -
• Brakes
• Brake Type: Hydraulic
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Rear Brake Rotor Diam x Thickness (in): 15.0 x 1.4
• Tires
• Front Tire Order Code: TCT
• Rear Tire Order Code: RCT
• Spare Tire Order Code: - TBD -
• Front Tire Size: 11R22.5G
• Rear Tire Size: 11R22.5G
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 22.5 x 7.5
• Rear Wheel Size (in): 22.5 x 7.5
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 10
• # of Bolt Holes - Rear: 10
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Pilot Mount
• Rear Wheel Description Cont.: Hub Pilot Mount
• Front Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Rear Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: Variable
• Turning Diameter - Curb to Curb (ft): 52.8
• Turning Diameter - Wall to Wall (ft): 56.2
• Frame
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 15.14
• Frame RBM (N/A): 1211200
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.38
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 45
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 194.0
• Length, Overall w/o rear bumper (in): 308.7
• Width, Max w/o mirrors (in): 96.7
• Height, Overall (in): 94.3
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 75.0
• Front Bumper to Back of Cab (in): 113.0
• Cab to Axle (in): 119.8
• Cab to End of Frame (in): 194.8
• Ground to Top of Frame (in): 40.4
• Frame Width, Rear (in): 34.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Body Length Default Value (ft): 0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.3
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Summary
• Vehicle Name: Ford Super Duty F-750 Straight Frame
• Body Style: Chassis Cab
• Body Code: 194" WB
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: - TBD -
